Style Guide Driven Development For Managers: Why You Should Care

Style Guide Driven Development for Project Managers

About Us

Adam Weingarten

Technical Architect, Acquia

D.O: adam.weingarten
github: aweingarten
linkedin: adam.weingarten

Sarah Thrasher

Front End Architect, Acquia

D.O: sarahjean
github: sarahjean
linkedin: sarah-thrasher-2379a61b/

What is the problem I have?

Getting Drupal to look the way you want is hard

Takes time to get Drupal looking they way you want

Good front end developers are hard to find

Front end phase longer and riskier

Process for Styling

Client asks for a thing

UX does comps and/or wire frames

Back end Developer builds a bunch of widget

Throws the finished page over the fence to the front-end developer

Front-end developer starts hacking away

WTF is style guide driven development?

Start with visual designs.

Break it apart into visually modular elements

build a small ideal model

don't build a page

Here's the problem

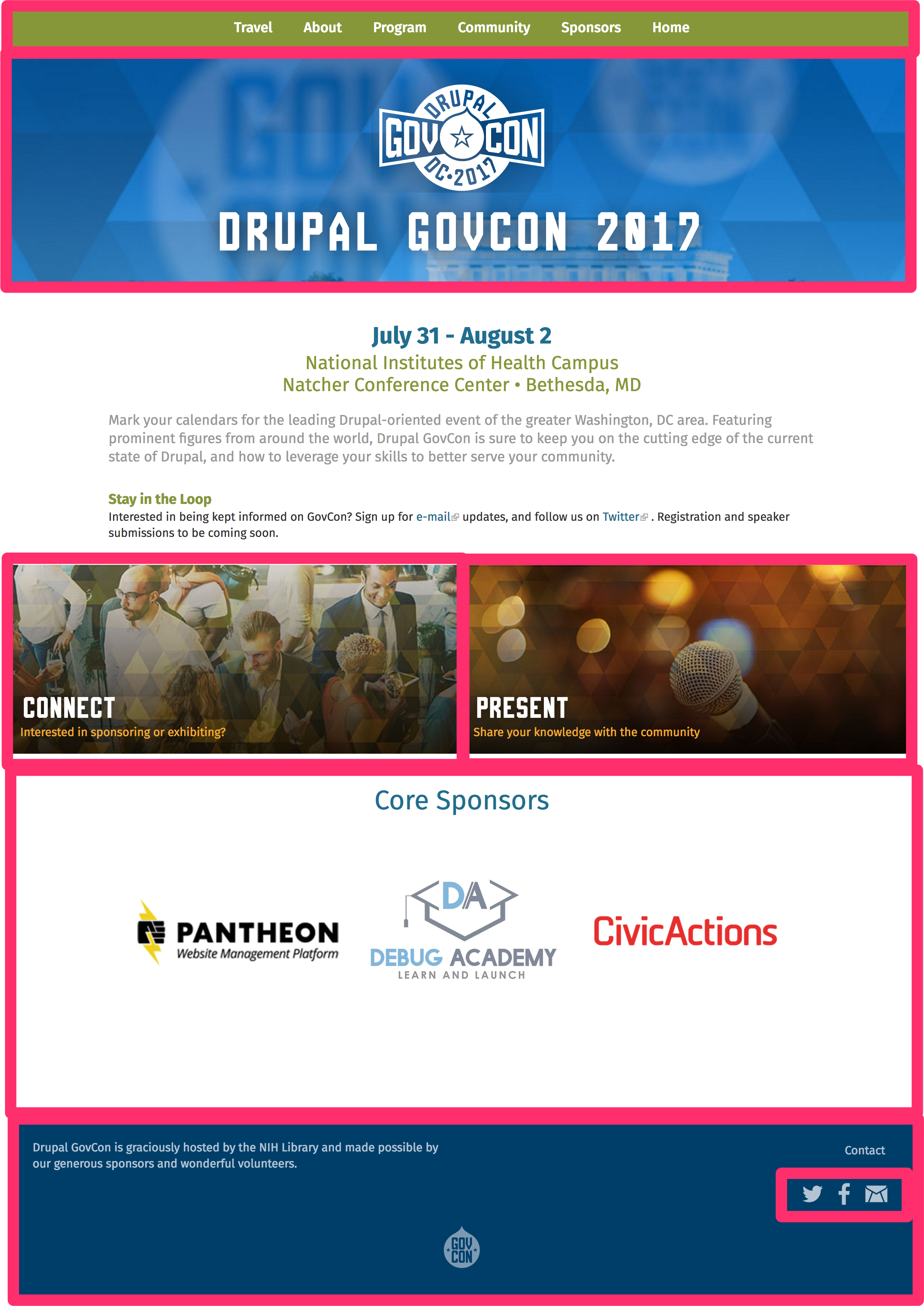

Here is that design exploded into modular elements

Lets take 1 element of the design and develop it.

Need the developer to think about how

to build this

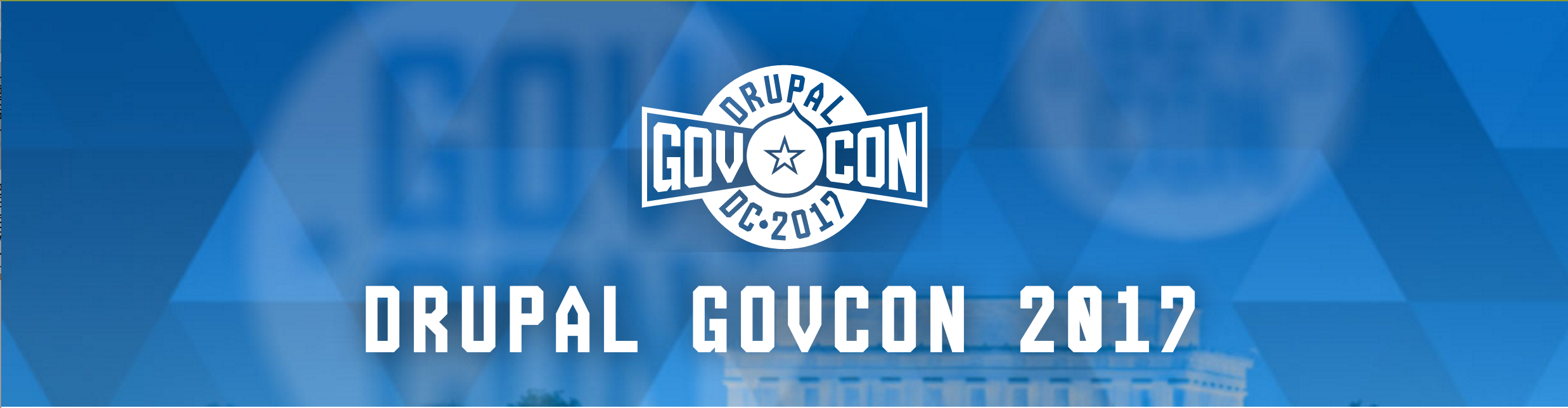

Hero

Instead of this

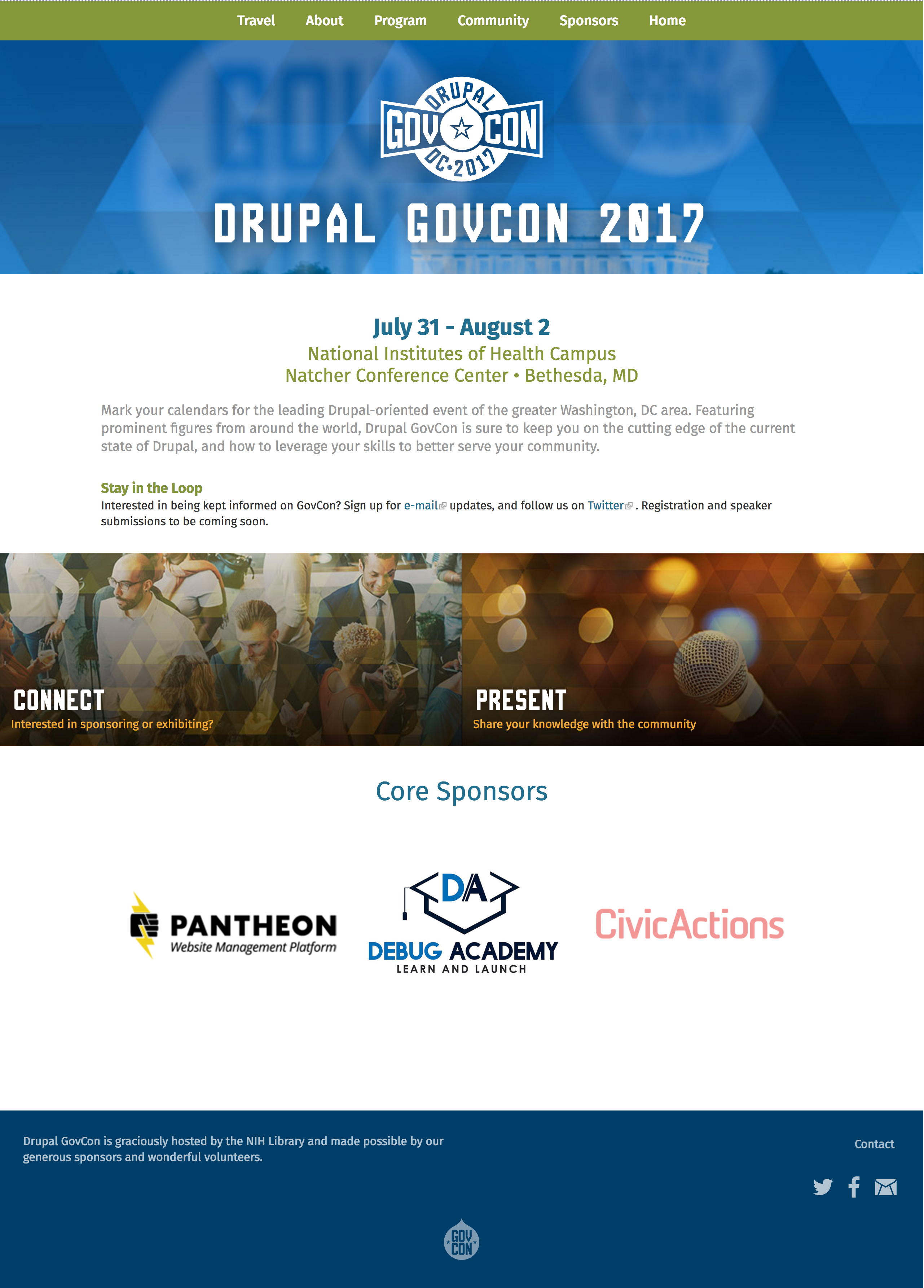

Govcon Website Image

Step 1: Forget Drupal

The horrible traumatic markup, etc does not exist.

This is an optimistic methodology.

There is no spoon meme from the matrix

Step 2: What does the HTML/Twig look like

Create markup to bring design to life

Use classes that make sense






                        {{ title }}

Step 3: What content will this thing have

Identify the parts that can change

Put those examples into a JSON file

JSON Example


                    {
                      "url": "/",
                      "logo": "img/logo.jpg",
                      "alt-text": "Drupal GovCon 2017 Logo",
                      "title": "Drupal GovCon 2017"
                    }

Step 4: Style the above by writing a small sass file.


                    // Hero
                    //
                    // Hero styling
                    //
                    // Markup: hero.twig
                    //
                    // Style guide: components.hero
                    .hero__wrapper {
                    }

                    .hero__logo {
                    }
                    .hero__title {
                    }
                    .hero__button {
                        &:link {
                        }
                        &:visited {
                        }
                        &:hover {
                        }
                    }

Step 5: Mix it up and get a style guide!

We'll get back to how

Step 6: Integrate!

Get Drupal to print markup that is consistent with your model.


                    {% embed "@components/hero/hero.twig" with {
                    'url': content.url,
                    'logo': content.logo,
                    'title': site_title
                    } %}
                    {% endembed %}

This is where D8 and Twig shines

Step 7: Enjoy!

Now we have a styled widget in Drupal

And it's powered by your style guide

Have a beer

Step 7.1: Generalize!

Step 7.2: Multiply!

Step 7.3: Repeat until All The Things are Styleguided!

And then you are done!

Step 8: Client threw you a change request!

What do you do?

Make changes to the style guide.

Recompile all the things.

Step 9: Enjoy

Until the next change request.....

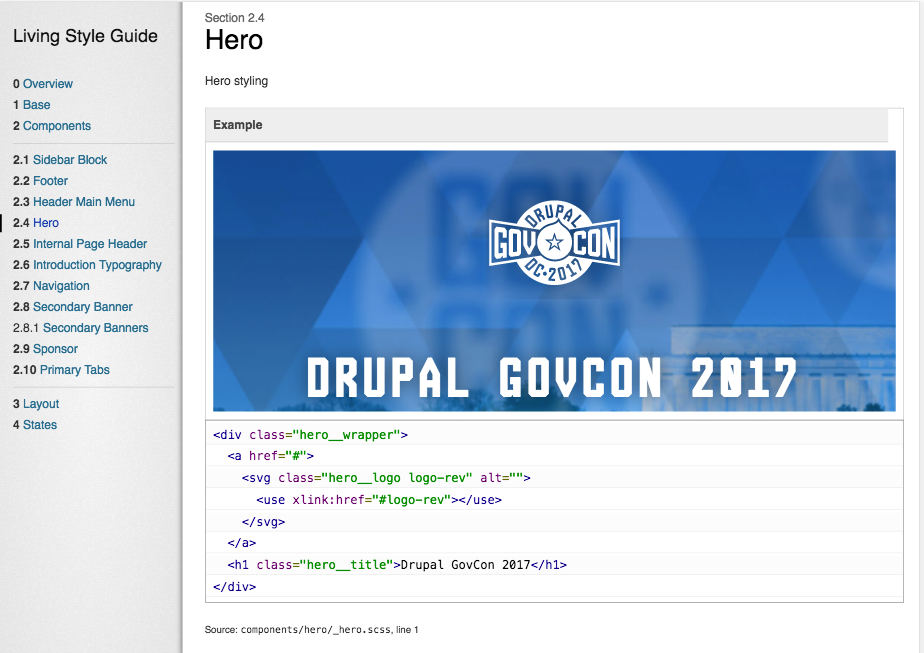

We promised to tell you how style guide magic works

Style guide by itself is a simple static site

It's generated via templates and sample data

What makes it a 'living' style guide?

Code is shared between it and your actual site, it isn't just used as a reference

This has referred to mainly the CSS in the past, but with D8 and Twig, your actual template files can be used as well, keeping markup patterns in sync.

Gulpfile snippet with KSS Node options


                      // ----- KSS Node ----- //
                      styleGuide: {
                        source: [
                          paths.styles.source
                        ],
                        destination: 'styleguide/',
                        css: [
                          path.relative(paths.styleGuide, paths.styles.destination + 'styles.css'),
                          path.relative(paths.styleGuide, paths.styles.destination + 'style-guide-only/kss-only.css')
                        ],
                        js: [],
                        builder: 'builder/twig',
                        namespace: 'components:sass',
                        'extend-drupal8': true,
                        homepage: 'style-guide-only/homepage.md',
                        title: 'Our Awesome Style Guide'
                      }

A plethora of tools...

There are a number of different tools that can be used to generate
the style guide so you will probably want to do a bit of research

KSS Node

Pattern Lab

SC5

Style Guide Generator Roundup - Susan Robertson

Also a build tool, such as grunt, gulp, npm scripts, etc...

So Why should I care?

Give me a reason or 8.

Validates clients' business requirements

Increases accuracy of estimation

Speeds up development

Increases the quality of deliverables

Builds confidence with change requests

Accelerating the delivery velocity

Building a bigger pool of developers

Integration becomes easier

Validating Clients Business Requirements

Preview styling and markup without a backend

Get feedback

Fix the nitpicks

But wait isn't that just ... Agile?

Boom

Supports Concurrent Development

You don't need a Drupal for styling

Increased separation of concerns

Project phases can proceed independently

Splitting up tasks by components as opposed to pages reduces inconsistencies.

More tasks that are smaller sized makes it easier to keep tickets moving.

Easier to test and QA.

Increasing Accuracy of Estimation

By decomposing large tasks into smaller tickets

(Smaller chunks are easier to estimate)

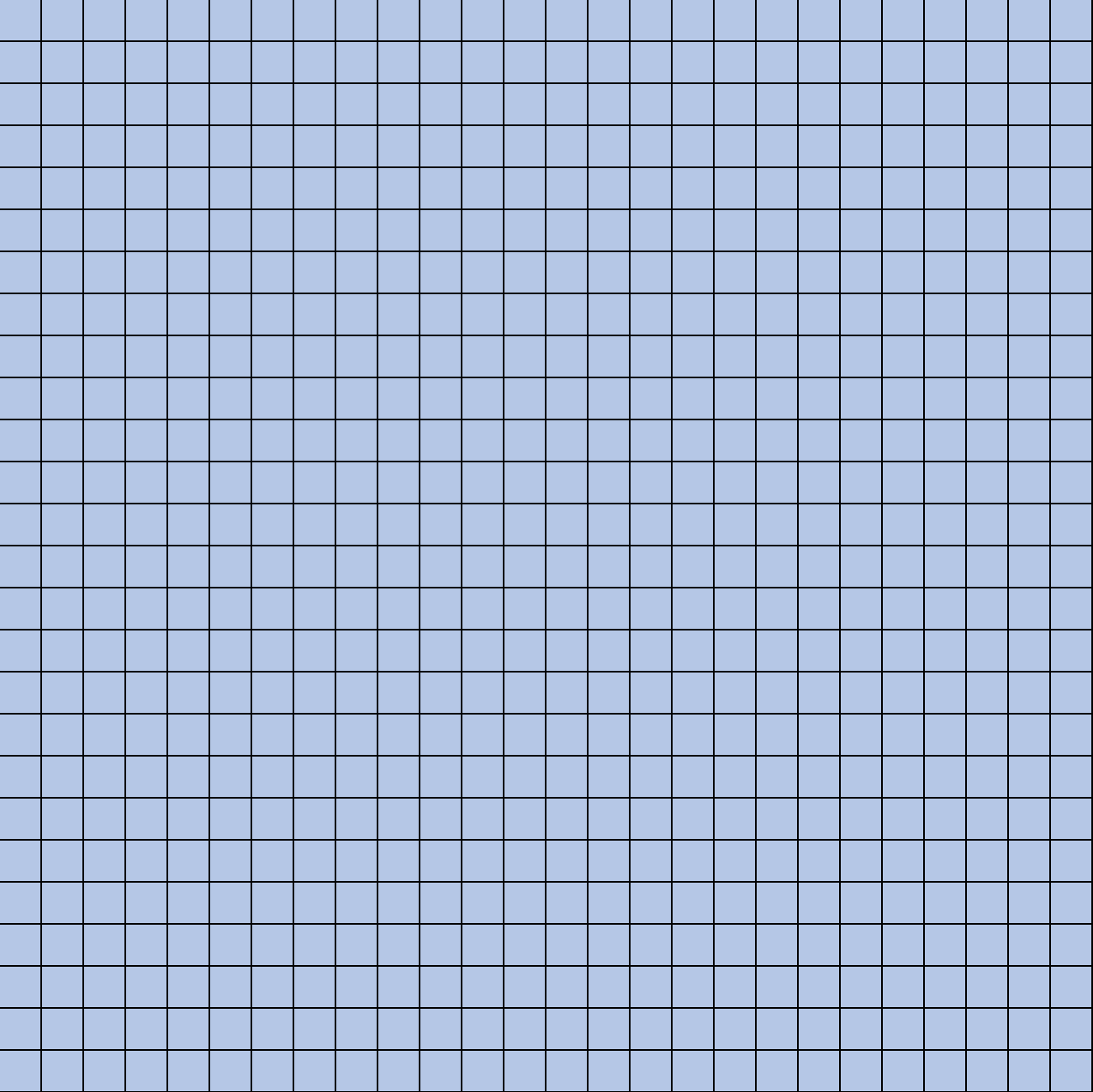

Grid of 3x3 squares Grid of 26x26 squares

Increasing the quality of deliverables

Splits styling and theming into discrete tasks

By separating task you do each better

Change Requests become easier

Change the model and Drupal changes with it

Building a bigger pool of developers

Tradish front end non-Drupalists can help build the style guide

Twig in D8 or Handlebars in headless more familiar to front enders.

Style guide can be even be created before the main dev team comes on-board

Still need a Drupalist for theming.

Integration becomes easier

Make Aggressive Front-end Changes without fear

Avoid Visual regressions

Style in more testable chunks

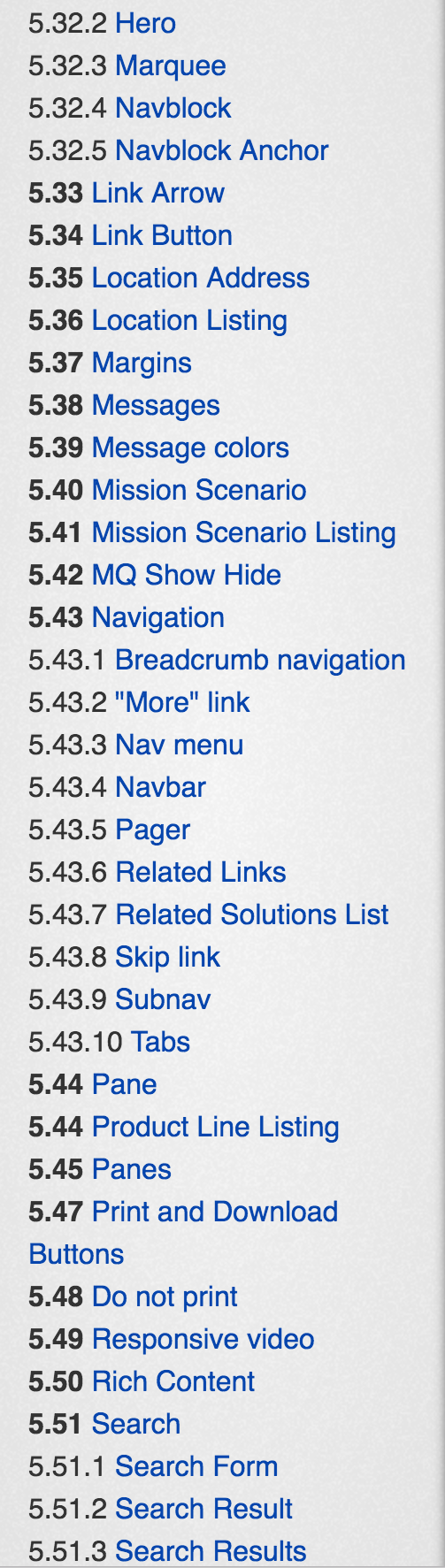

Your style guide can be an asset for content creators and future business decisions

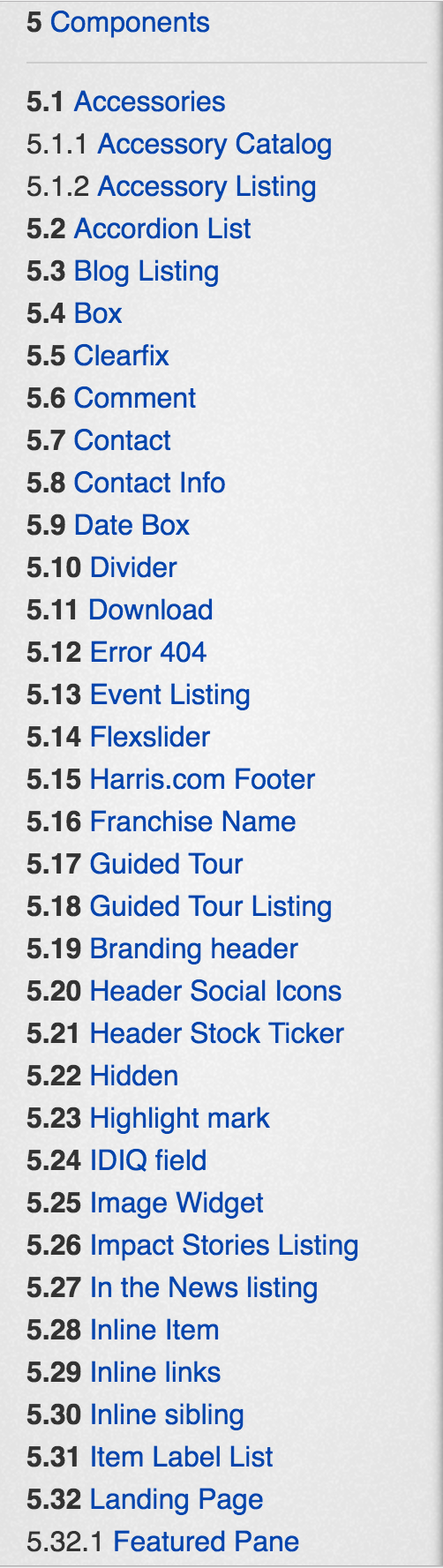

Reduce rework now that you have a record of available design components.

Your style guide can also document usages and options that might not be as obvious from the content creation form.

It will be a useful reference for on-boarding new contributors to your project.

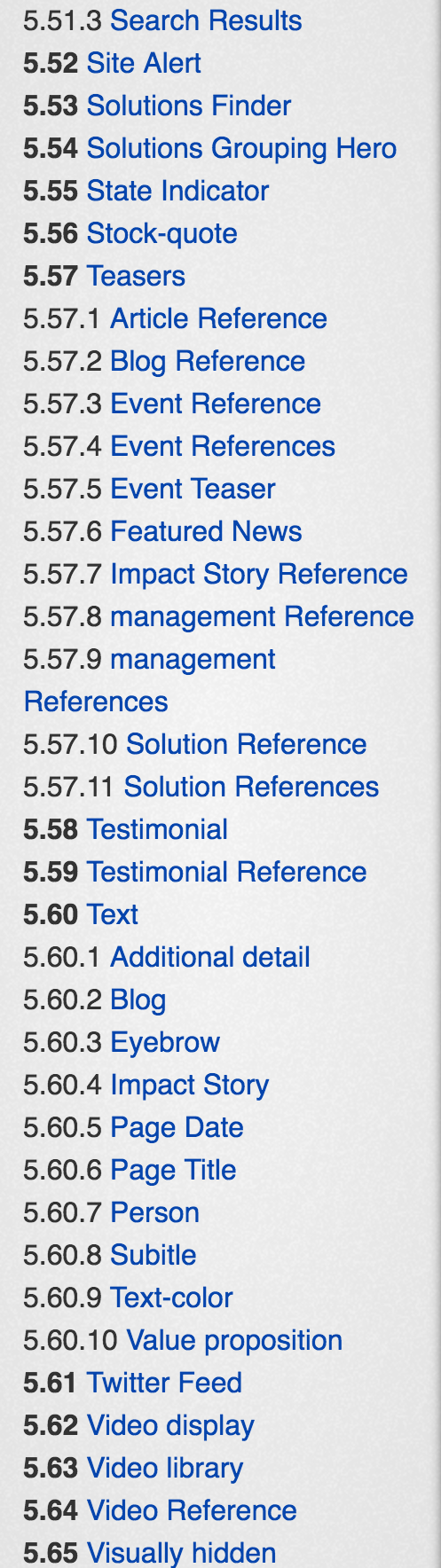

Your asset library can be fierce...

Getting Drupal to look exactly the way you want can be hard.

Now you have some tools to help!

Component based approaches to theming

Living style guide

Questions?

Leave us some feedback!

Friday sprint reminder slide

DA asked us to include this.

Resources for your Devs

Thanks!
